Product name:KHBF(KHMF) flanged high pressure ball valve
Modle number:KHBF-016,
                           KHBF-020,
                           KHBF-025,
                           KHBF-032,
                           KHBF-040,
                           KHBF-050,
                           KHBFF-032,
                           KHBFF-040,
                           KHBFF-050,

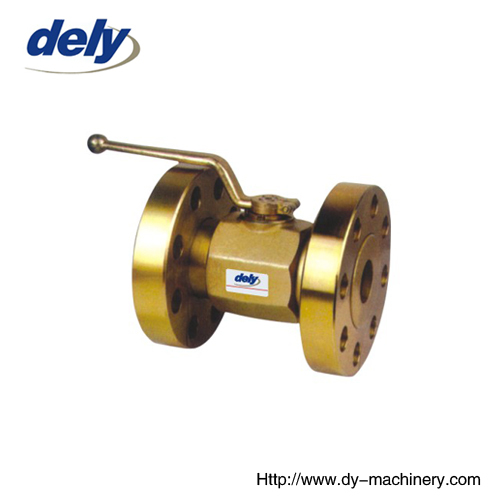

                                                            KHBF(KHMF) 2 way flanged high pressure ball valve

Model Code:
1:Product Code:KHB-Squares type,DN-16-25 KHM-Round type DN32-50
2:Port Size:16\20\25\32\40\50mm
3:PressureRange:4\6.3\16\25\31.5Mpa(40\63\160\250\315Bar)
4:Body Material:1-steel;4-stainless steel
5:Ball and control the body of mandrel material:1-alloy steel;4-stainless steel
6:Ball seall material:1-POM
7:Connector body and control the mandrel ring material:2-NBR;4-FPM
8:Flang material:6-carbon steel
9:Handle Type:02-Steel crooked hoop handle; 06-Steel crooked screw handle

Installation Dimension:



Company Profile:

FENGHUA KAIYANG ELECTROMECHANICAL CO.,LTD. specailly manufacturer and market hydraulic ball valve,hydraulic fitting,pneumatic control element,air source units,pneumatic execute element and pneumatic assistant element.We have passed ISO9001:2000 quality system authentication.With advanced technology and equipment,good quality,our products sale far to many countries.In order to meet more and more customer's requirements.
We always stick to the enterprise spirit"Quality First,Good Serivice,Mutal Benefit"
