2W (UD) 2 way brass water solenoid valve (small aperture) china from China manufacturer

2W (UD) 2 way brass water solenoid valve (small aperture) china

Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 2S025-08

Production Capacity: 1000~10000pieces/month

Delivery Date: 1~20working days

Standard or Nonstandard: Standard

Pressure: Low Pressure

Temperature of Media: Normal Temperature

Brand Name: AUDELY

Means of Transport: Ocean,Land,Air

Packing: Standard Export

Power: Pneumatic

Media: Gas

Material: Alloy

Structure: Pilot

solenoid valve is the interface between electronic controllers and pneumatic systems.

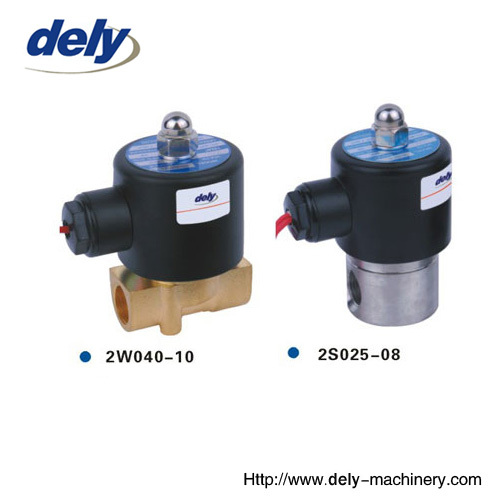

Product name:2W (UD) 2 way brass water solenoid valve (small aperture)
Modle number:2S025-08

Symbol
Normal Close
Ordering Code

2W	25	-	08	-	AC110V	-	V
\|	\|		\|		\|		\|
Specification Code	Aperture Flow Rate		Joint Pipe Bore		Standard Voltage		Oil Seal Code
2W:Two-position two way solenoid valve(direct type)	012:1.2mm 020:2.0mm 025:2.5mm 0.40:4.0mm		06:G1/8 08:G1/4 10:G3/8		DC12V DC24V		Blank:NBR
2WH:Two-position two way solenoid valve(high pressure direct drive type)					AC24V 50Hz/60Hz AC110V 50Hz/60Hz		V:VITON (For High temperature
2S:Stainless steel two position two way solenoid valve(direct drive type)					AC220V 50Hz/60Hz AC380V 50Hz/60Hz
2SH:Stainless steel two position two way solenoid valve((high pressure direct drive type)

Specification

Model	2W025-06	2W025-08	2W040-10	2WH012-06	2WH012-08	2WH020-10
	2S025-06	2S025-08	2S040-11	2SH012-06	2SH012-08	2SH020-11
Working Medium	Air,Water,Oil
Motion Pattern	Direct Drive Type
Type	Normal Close Type/Normal Open Type
Aperture Flow Rate(mm)	2.5		4	1.2		2
CV Value	0.23		0.6	0.05		0.15
Joint Pipe Bore	G1/8	G1/4	G3/8	G1/8	G1/4	G3/8
Operation Fluid Viscosity	20 CST Below
Working-pressure	0~0.7MPa			0~2.0MPa
Max. Pressure Resistance	1.0MPa			3.5MPa
Operating Temperature Range	-5~+80℃
Voltage Range	±10%
Materail of Body	2W:Brass 2S:Stainless Steel
Materail of Oil Seal	NBR,EPDM or VITON

Dimension

Company Profile:

FENGHUA KAIYANG ELECTROMECHANICAL CO.,LTD. specailly manufacturer and market hydraulic ball valve,hydraulic fitting,pneumatic control element,air source units,pneumatic execute element and pneumatic assistant element.We have passed ISO9001:2000 quality system authentication.With advanced technology and equipment,good quality,our products sale far to many countries.In order to meet more and more customer's requirements.
We always stick to the enterprise spirit"Quality First,Good Serivice,Mutal Benefit"
