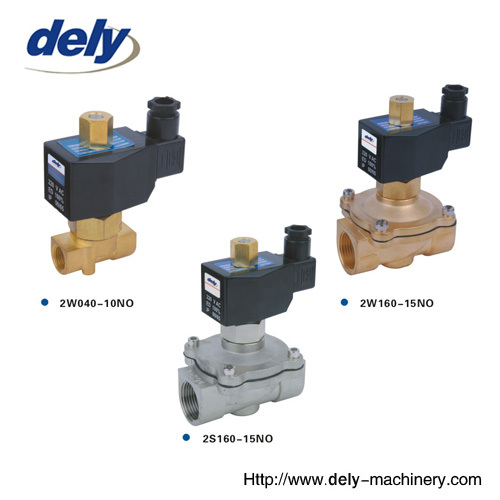

2W/2S (UW) 2 way brass (stainless steel) water normal open solenoid valve (larger aperture)

Payment Terms: T/T,L/C
Place of Origin: Zhejiang, China (Mainland)
inquire skype
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: 2W160-15NO
Production Capacity: 1000~10000pieces/month
Delivery Date: 1~20working days
Standard or Nonstandard: Standard
Pressure: High Pressure
Temperature of Media: Normal Temperature
Brand Name: AUDELY
Means of Transport: Ocean,Land,Air
Packing: Standard Export
Power: Pneumatic
Media: Gas
Material: Alloy
Structure: Pilot

quality of ISO9001 procedures to meet world standard and internationalized specification.

Product name:2W/2S (UW) 2 way brass (stainless steel) water normal open solenoid valve (larger aperture)
Modle number:2W160-15NO

Symbol

Ordering Code
Ordering Code

2W160-10-NO-AC110V-D
||
|
|
|
|
Specification Code|
|
|
Standard Voltage
Wiring Form
2W:Two-position two way solenoid valve(direct type)Aperture of Flow Rate
Joint Pipe Bore
NO:Normal Open
DC12V      DC24V
Blank:Lead Wire Type
2S:Stainless steel two position two way solenoid valve(direct drive type)040:4.0mm 160:16mm 200:20mm 250:25mm
10:3/8   15:1/2 20:3/4    25:1


AC24V 50Hz/60Hz AC110V 50Hz/60Hz
D:Join Connector E:Blast-proof Coil     G:Water-proof Coil







AC220V 50Hz/60Hz AC380V 50Hz/60Hz



Overall Dimension

ModelLHD
2W040-10NO5310554
2W160-10NO6911662
2W160-15NO6911662
2W200-20NO7312762
2W250-25NO9913562


Specification

ModelWorking mediumMotion PatternTypeAperture of Flow RateCV ValueJoint Pipe BoreOperation Fluid Viscositykgh/cm²Working pressurekgh/cm²Max. Pressure ResistanceOperating TemperatureVoltage RangeMaterial of BodyMaterial of Oil Seal
2W040-10NOAir Water Oil GasDirect Drive TypeNormal Open Type40.63/8"20 CST BelowWater Oil: 0~5MPa               Air Gas: 0~7MPa10.5MPa'-5~80℃±10%2W: Brass 2S: Stainless SteelNBR, EPDM or VITON
2W160-10NO164.83/8"
2W160-15NO164.81/2"
2W200-20NO207.63/4"
2W250-25NO25121"
